Nguồn gốc: | Trung Quốc |
---|---|
Hàng hiệu: | Runpaq |
Chứng nhận: | NONE |
Số mô hình: | K33 |
Số lượng đặt hàng tối thiểu: | 1000 miếng |
chi tiết đóng gói: | thùng carton |
Thời gian giao hàng: | 15-21 ngày |
Điều khoản thanh toán: | T / T, L / C, D / A, D / P, Western Union |
Khả năng cung cấp: | 200000 bộ / tháng |
Điện áp bình thường: | Pin Lithium 2,5-5VDC | Ứng dụng: | mở / đóng van gia nhiệt |
---|---|---|---|
Dòng chạy rỗng: | <40 mA (23 C) (động cơ # 300) | Hiện tại khi tải đầy đủ: | khoảng 650 mA |
Động cơ: | Động cơ DC2.5V # 300 | Mô-men xoắn: | 2 NM (1600: 1) |
Thời gian mở / đóng cửa: | <10 S (1600: 1) | Tỉ lệ giảm: | 2000: 1 (Đối với van bi DN15 - 25); |
Sự bảo vệ: | IP67 | Người mẫu: | K33 |

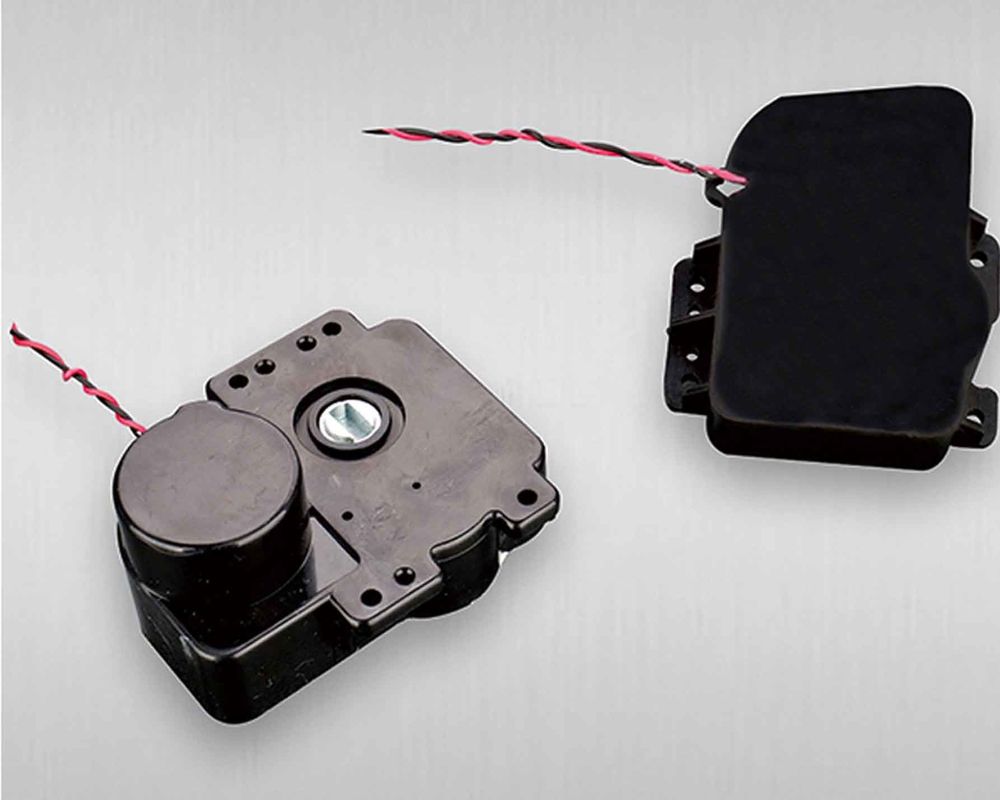

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.

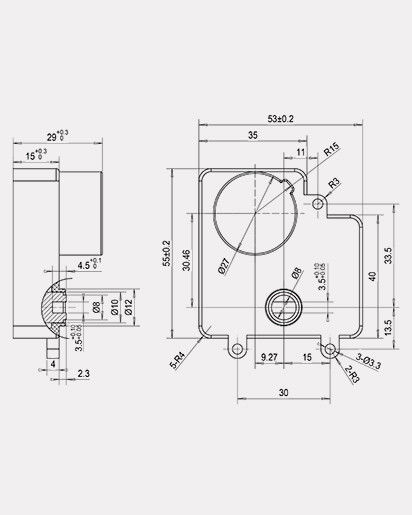

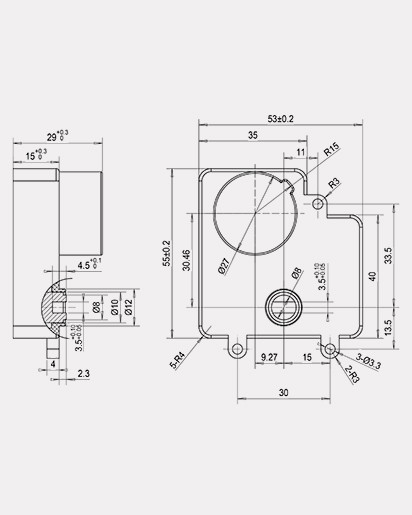

Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
